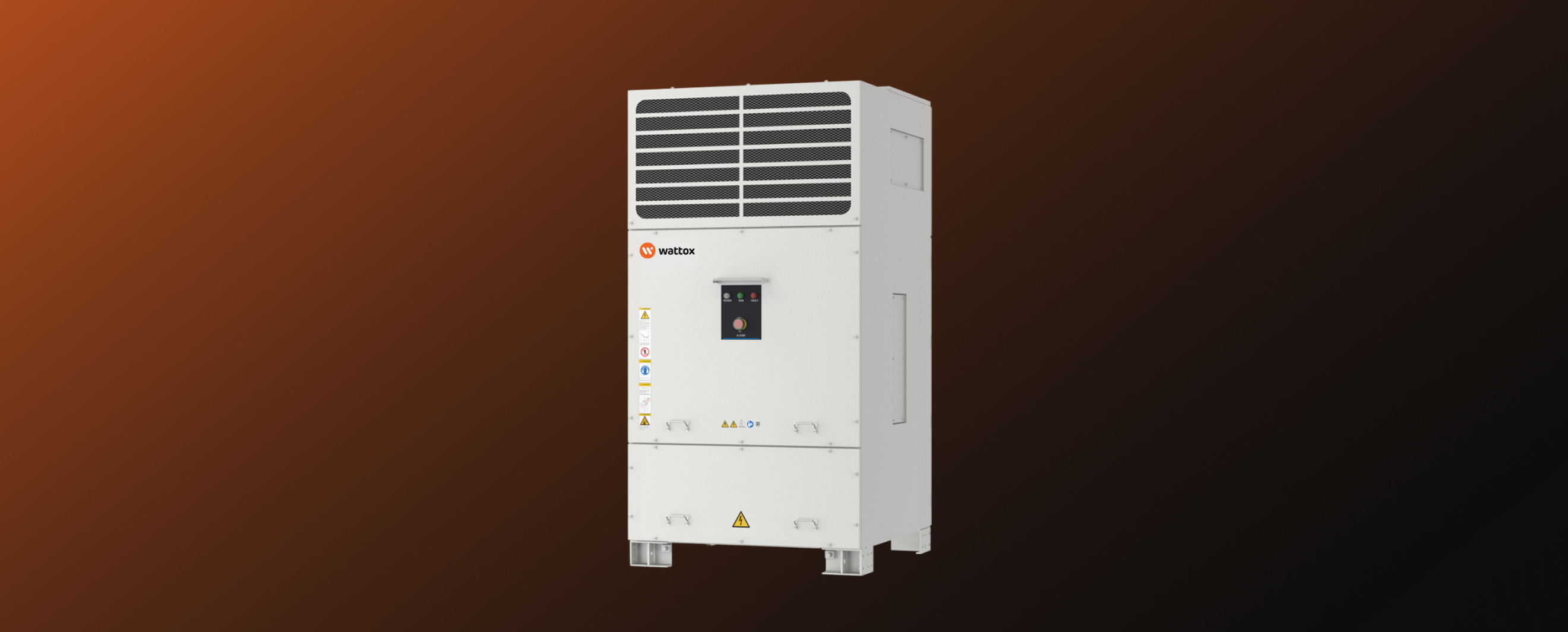

Wattox MPCS-2500-D
A high-density 2.5 MW power conversion system engineered for large-scale energy storage, delivering flexible operation, advanced cooling, and scalable performance across complex grid environments.
Key features
Smart and efficient
Advanced power conversion architecture ensures high efficiency and fast response, enabling stable and optimized performance under dynamic operating conditions.
Advanced grid support
Supports both grid-connected and off-grid operation, enabling reliable energy flow and enhanced system stability across varying grid scenarios.
Smart connectivity
Enables efficient communication and control through broad protocol support, ensuring smooth integration within large-scale energy systems.
Safe and reliable
Built-in protection mechanisms and intelligent diagnostics ensure safe operation, rapid fault detection, and long-term system reliability.
Flexible and compatible
Designed to support multiple operating modes and seamless integration with energy management and battery systems, ensuring adaptability across diverse project requirements.
Scalable and cost-efficient
High power density and parallel system capability enable flexible capacity expansion while optimizing space and overall system costs.
Technical specifications
Maximum DC voltage
1500 V
Operating DC voltage range
1000 – 1500 V
Maximum DC current
1403 A x 2
Number of DC input channels
2
Rated power
2500 kW @ 45°C
Maximum output power
2750 kW @ 35°C
Rated grid voltage
690 V
Mains voltage range
621 - 759 V (standard)
Rated network frequency
50 / 60 Hz*
Current THD
< 3% (reactive power)
Reactive power range
-1.05 (capacitive) ~ +1.05 (inductive)
Power factor
-1 (leading) ~ +1 (lagging)
AC connection type
3-phase, 3-wire
Rated AC voltage
690 V
Rated output frequency
50 / 60 Hz
Voltage variation
<1% (linearly balanced load)
Voltage THD
<3% (linear load)
Interfaces
RS485, CAN, Ethernet, DI/DO, HMI
Protocols
Modbus-RTU / CAN 2.0B (Optional: Modbus-TCP, IEC 61850, EtherCAT)
Maximum Efficiency
99
Cooling method
Liquid-air cooled
Ambient temperature
-40°C ~ +60°C (derating >45°C)
Relative humidity
0% – 100% (non-condensing)
Cable entry direction
DC from below, AC from behind
Dimensions (W×D×H)
1200 × 1250 × 2370 mm
Weight
< 1800 kg
Max. operating altitude
3000 m (derating above 2000 m)
Protection class
IP65
Standards
EN-55011, IEC-61000-6-2/4, EN62477-1, EN-50549-2/10
Resources
Datasheets
User manual
Certificates
For full technical documentation, user manuals, and additional resources, please visit our Librarypage.
