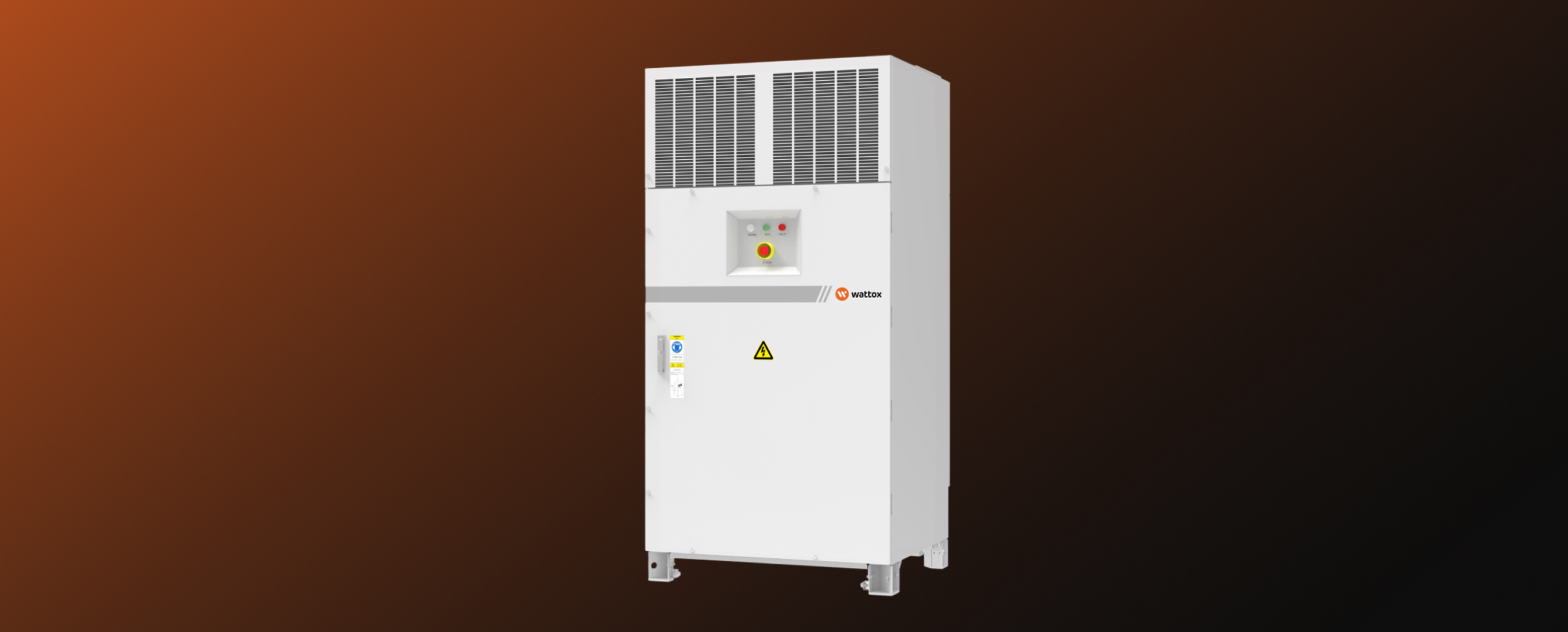

Wattox MPCS-1725-S
A high-capacity 1725 kW power conversion system designed for scalable, high-performance energy storage and grid support applications.
Key features
Smart and efficient
Advanced power conversion architecture ensures high efficiency and fast response, enabling stable and optimized performance under dynamic operating conditions.
Advanced grid support
Supports stable operation across both grid-connected and off-grid scenarios, enabling reliable energy flow and enhanced system resilience.
Smart connectivity
Enables efficient communication and control through broad protocol support, allowing smooth integration within complex energy infrastructures.
Safe and reliable
Advanced cooling and protection design improves thermal stability, enhances environmental adaptability, and ensures safe long-term operation.
Scalable system architecture
Flexible system design allows multiple units to operate together, supporting easy expansion and adaptation to evolving project requirements.
Cost-effective design
High power density combined with an optimized cooling approach reduces footprint and overall system costs while maintaining performance.
Technical specifications
Maximum DC voltage
1500 V
Operating DC voltage range
1000 – 1500 V
Maximum DC current
1807 A
Number of DC input channels
1
Rated power
1725 kW @ 45°C
Maximum output power
1898 kW @ 35°C
Rated grid voltage
690 V
Mains voltage range
621 - 759 V (standard)
Rated network frequency
50 / 60 Hz*
Current THD
< 3% (reactive power)
Reactive power range
-1.05 (capacitive) ~ +1.05 (inductive)
Power factor
-1 (leading) ~ +1 (lagging)
AC connection type
3-phase, 3-wire
Rated AC voltage
690 V
Rated output frequency
50 / 60 Hz
Voltage variation
<1% (linearly balanced load)
Voltage THD
<3% (linear load)
Interfaces
RS485, CAN, Ethernet
Protocols
Modbus-RTU / CAN 2.0B (Optional: Modbus-TCP, IEC 61850, EtherCAT)
Maximum Efficiency
99
Cooling method
Liquid-cooled
Ambient temperature
-40°C ~ +60°C (derating >45°C)
Relative humidity
0% – 100% (non-condensing)
Cable entry direction
DC cable from front bottom, AC cable from rear bottom
Dimensions (W×D×H)
1080 × 870 × 2175 mm
Weight
< 1200 kg
Max. operating altitude
3000 m (derating above 2000 m)
Protection class
IP65
Standards
EN-55011, IEC-61000-6-2/4, EN62477-1, EN-50549-2/10
Resources
Datasheets
User manual
Certificates
For full technical documentation, user manuals, and additional resources, please visit our Librarypage.
